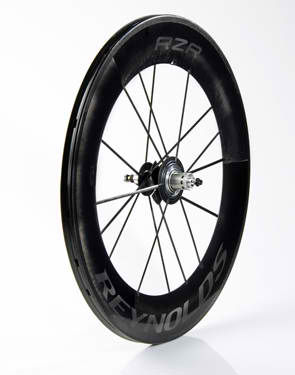

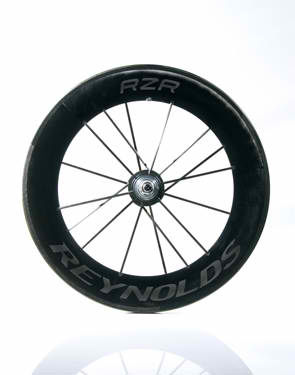

Reynolds RZR™92.2

The Reynolds RZR 92 is the first non-disc wheel designed and built for the precise demands of time trialing and triathlon. It’s stiff, responsive and aerodynamic, with astonishingly low mass.
The ultra deep profile was developed using proprietary computational fluid dynamics–the same techniques used to design, optimize, and validate airflow for U. S. Navy unmanned drones and guided missiles. The 92 mm rim depth terminates in a razor sharp trailing edge that creates the smoothest possible conformal shape for re-attachment of separated and turbulent air. We’ve further enhanced the unique trailing edge contour by attaching 12 N.A.C.A. 0033 airfoil, full carbon-composite spokes virtually zero drag. The spokes terminate in a full carbon Torque Flange hub with a double carbon wall for extreme lateral stiffness, and full carbon axle.

The innovative tire mounting and brake-track region of the rim of the
RZR 92 is another Reynolds exclusive. We’ve made the tire bed 70% larger
and 30% deeper than our traditional tubular profile, for nearly
seamless tire-to-rim airflow continuity. The RZR 92 aerodynamic section
accommodates tires from 19mm to 22mm with no increase in drag as tire
diameter increases. Typically a narrower tire will result in a lower
drag value, due to the fact that a narrower tire moves the thickest
portion of the aerodynamic shape rearward, reducing separation. With the
increasing popularity of wider tires in TT and Triathlon, the RZR 92 is
designed to accommodate wide tires without sacrificing performance.



In addition, we’ve added a channel that runs around the rim on the
centerline of the tire mounting surface to create additional clearance
for the stitching and cloth tape covering. This feature promotes optimal
contact between the round tubular tire and the rim to ensure the tire
stitching and tape covering will not “waddle” from bottoming out on the
rim. This optimal contour reduces rolling resistance variability caused
by tire gluing . Unlike ovoid designs, the RZR 92 does not compromise
braking performance or frame fit. The sidewalls of the RZR 92 are
parallel for predictable, strong braking, but the sidewall placement and
termination is unique. The RZR 92 is the first wheel to apply
Dispersive Effect Termination™ (DET) to a wheel contour to help smooth
out the turbulent airflow caused by wheel rotation. DET smoothes
excited, energized air (air that varies in predictable frequencies) and
re-attaches it to reduce drag.



The 92 RZR sets a new standard for a low-drag time trial and triathlon
wheel, best in class, 15.2 watts at 50 kph at 10 degrees yaw.
