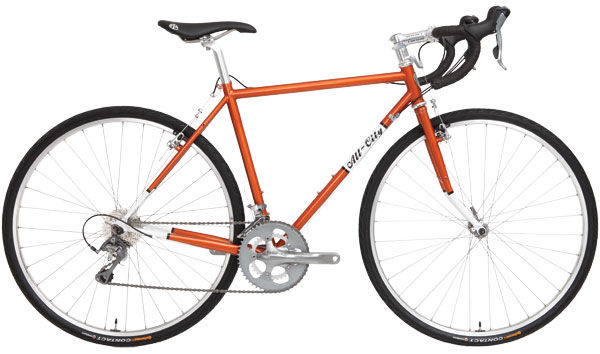

All-City SPACE HORSE (2011)

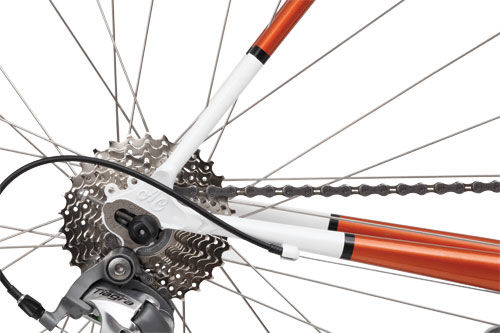

One of the coolest aspects of the Space Horse project was getting the opportunity to design our second signature dropout. Knowing that we wanted to allow the bike to be used single or geared and designing around fenders, meant that the obvious choice was a semi horizontal. Now semi horizontals are great for allowing single speed use, and unlike rear entry dropouts they don't require the rider to remove the rear fender to change a flat. But we've always felt that the design has a few shortcomings, so we got in there and designed a semi that acts more like a vertical dropout. The small tab on the front of the dropout in combination with the adjustment screw, not only means that the wheel is fixed in place like a vertical, but that you never have to wonder where you'll get best shifting. Simply place the wheel fully forward in the dropout and you're done. The geometry of the frameset itself, is a mix of traditional road and touring geo's giving the bike agile head tube and seat tube numbers, a relatively short rear end, but with a lower than roadbike bottom bracket for increased stability while loaded. The tubest was chosen with 30lbs rear and 20lbs front max loads in mind.
